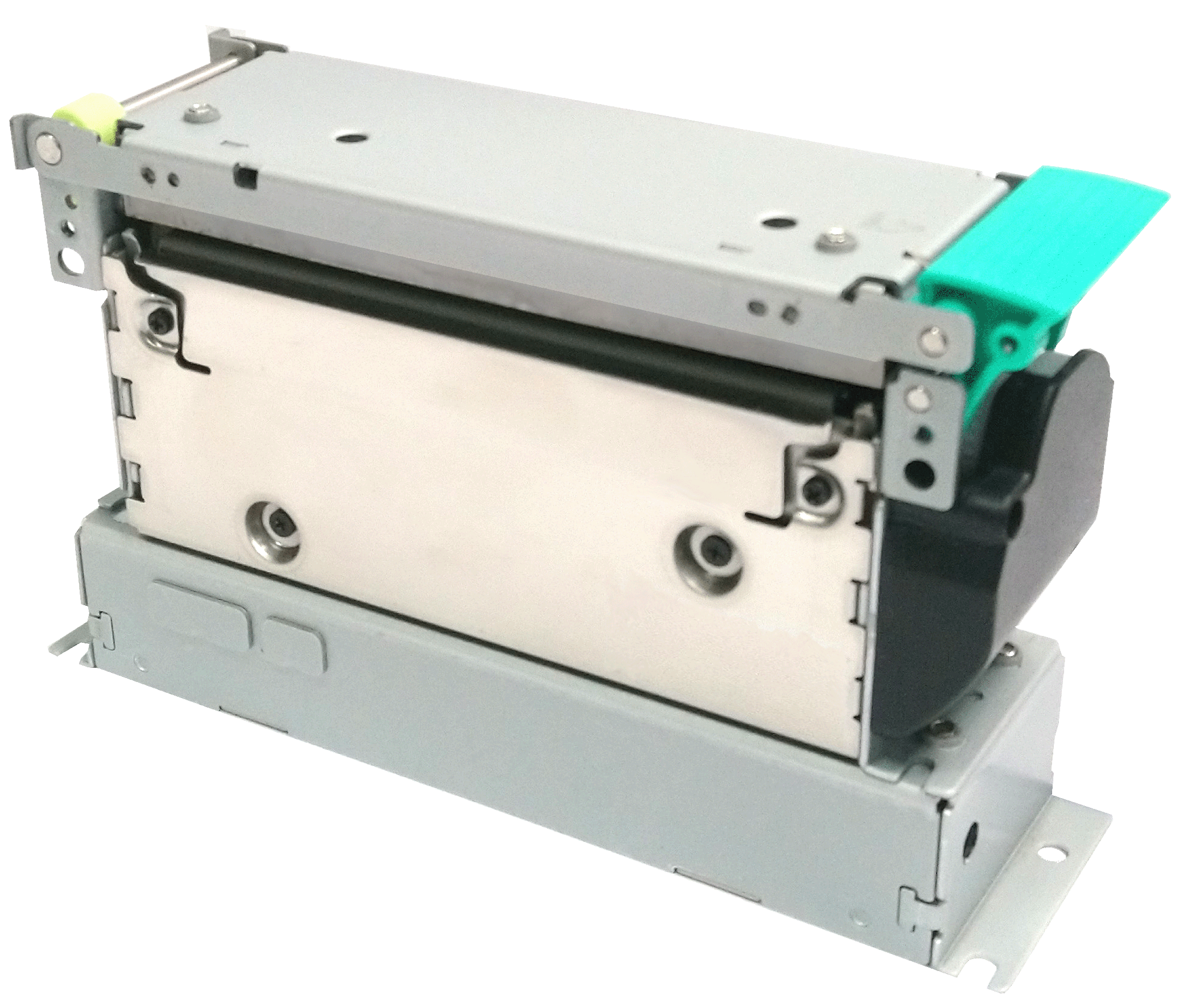

A printer with versatile industrial applications for kiosks, receipts, promotions, and more.

PRINT CHARACTERISTICS:

• Method: Thermal line dot printing

• Number of dots per line: 640

• Resolution (dots/mm): 8/203 dpi

• Paper width (mm): Max 80 +/- 0.2mm

• Paper thickness (mm): 0.06-0.15

• Print speed: 250mm/second

• Paper roll diameter (mm): 150

• Print color: Black

DETECTION:

• Head temperature: Thermistor

• Platen position: Photo interrupter

• Out of paper: Photo interrupter

• Cutter home position: Micro switch

POWER SUPPLY:

• Operation voltage (Vdd): 3.13-5.25 (DCV), 56mA (max)

• Operation voltage (Vp): 24-26.4 (DCV), 15.8A (max peak)

AUTO CUTTER:

• Method: Slide type

• Paper thickness: Max 0.15mm

• Cutting type: Full cut, Partial cut

• Operating time maximum: 35 cuts/min (at 0.06mm paper)

• Cutting pitch minimum: 10mm

ENVIRONMENTAL CHARACTERISTICS:

• Operation temperature (celsius): 5-50

• Storage temperature (celsius): -20-60

• Operation humidity: 10-80%

SERVICE LIFE:

• TPH: 150km

• Auto Cutter: 1,000,000 cuts (at 0.06mm paper)
